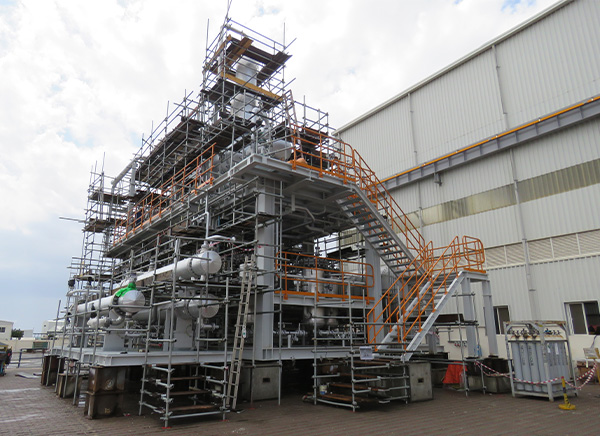

Manufacturing
STS Group operates two specialized manufacturing workshops in Oman, covering a total area of 145,745 sqm. A state-of-the-art heavy fabrication facility is located in Nizwa and another manufacturing setup is located at Sohar the industrial city of Oman close to the northern borders. We have covered fabrication areas in excess of 24,000 sqm. with effective fabrication height of max. 10.5 m under hook and single lift capacity of 800MT within the facility.
Both shops are equipped with modern facilities for Plate cutting, metal forming, Drilling, welding, heat treatment, and machining activities. Workshop facilities include heavy fabrication bays, vessel fabrication shops, machine shops, and areas dedicated to exotic materials welding.
Our Nizwa facility is capable of manufacturing critical equipment with thicknesses up to 239 mm (cold rolling) — among the largest in the Middle East, except KSA. Both workshops are supported by an impressive array of handling and quality control systems, ensuring reliability.
Our main products are all kinds of Static / Process equipment, Reactors, Columns, Heat Transfer Equipment, Process Skids & Modules, Piping Pre-fabrication works etc., etc. We have an ‘In house’ design team capable of designing static equipment to the International Rule ASME Sec. VIII Div. 1/ ‘U’, Div. 2/’U2’ Stamp for Process Equipment and in-house HTRI program for thermal design of Heat Exchangers.
Currently, we have supply references to more than 16 countries. Our equipment are installed & operating in various countries such as Algeria, Egypt, Brazil (for Offshore / FPSO), Congo, Russia, Kazakhstan, Lithuania, Singapore, Turkmenistan, India, USA apart from the GCC region.
The Facility also includes a 3,000 sqm. of covered maintenance shop to cater to pump maintenance, machining, valve repair, testing, refurbishment and calibration.
STS Group’s regional footprint is further strengthened by STS CLAD, an 80,000 sqm specialized facility in Ras Al Khaimah, UAE, focused on pipe cladding and weld overlay services.
Special Achievements

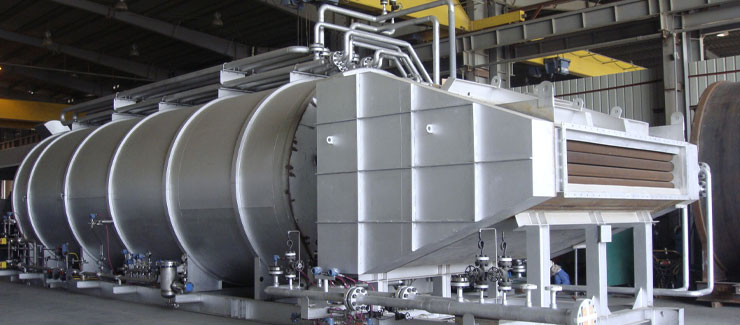

- Fabrication of HRSG / OTSG – First time in Oman
- Manufactured and supplied process equipment with more than 50 meters in length
- Manufactured and supplied 162+6, 153+6, 143+6 mm heavy-thick Clad vessel to PDO, Oman

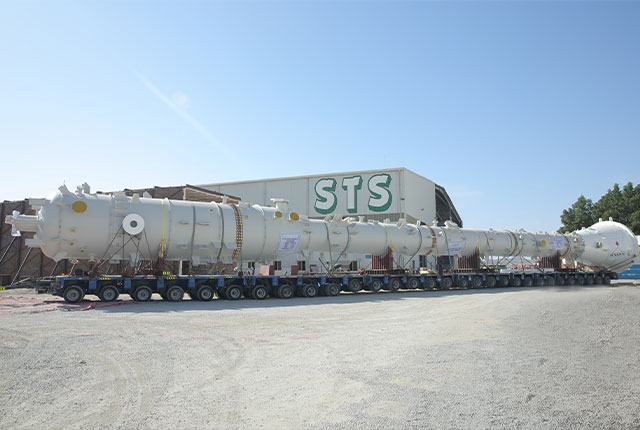

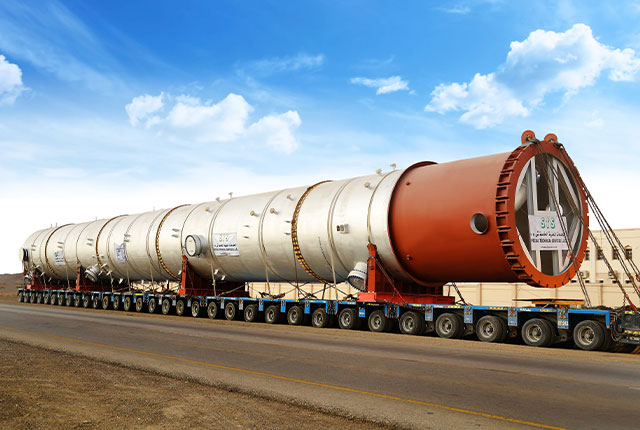

- Manufactured and delivered the longest column for PDO, Oman
- Delivered more than 1000 process equipment
- Delivered more than 125 clad/weld overlaid vessels

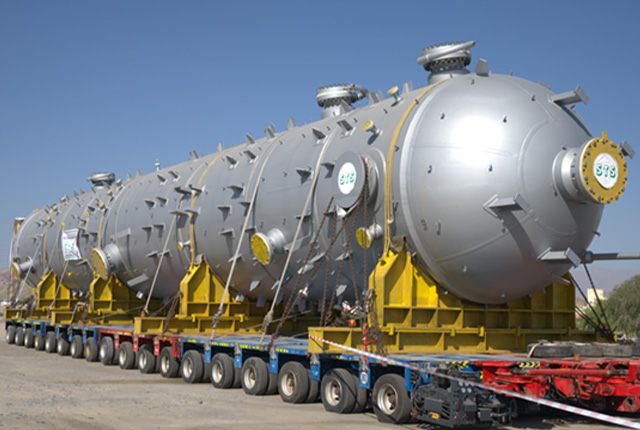

- Delivered more than 100 nos. of ASME Sec. VIII Div. 2, U2 stamped heavy pressure vessels

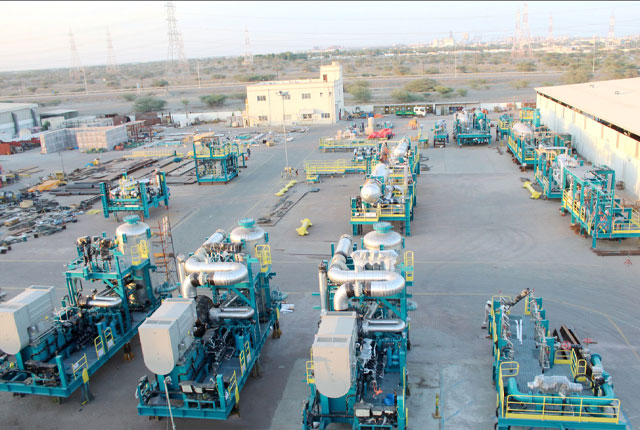

- Delivered more than 900 skid packages for various applications for the Oil & Gas Industry
- Manufactured and delivered process skids with a height of more than 9 meters in a single unit
- CRA/SDSS Piping Fabrication for Projects outside Oman

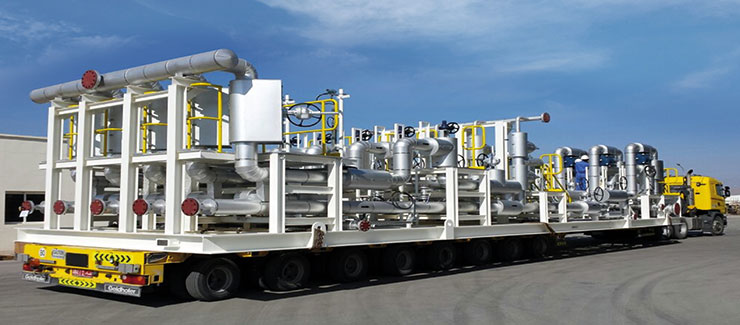

Services Offered
Manufacturing Process equipment
Fabrication & Assembly of Process Skids & Modules
Pipe Spool Fabrication
Heat Transfer Equipment Fabrication
Welding & Fabrication:
750+Welding procedures using various welding techniques including GTAW, GMAW, SMAW, SAW, FCAW, ESSC and Automatic GTAW (Orbital) Welding of exotic materials such as Alloy 625, Alloy 825, 6 Mo, SDSS, DSS, SS316, Low Alloy Steel (P11, P22, P91), Monel, Hastealloy
Maintenance:
- Maintenance, Repair, and Testing of Pumps, Valves, and Other Industrial Machinery
- Machining & Equipment Assembly works
Site Services:
- Field Repair and Modification of existing facility, including repair of pressure equipment,
- Hot tapping
- Field Tie-ins
- Field erection of piping

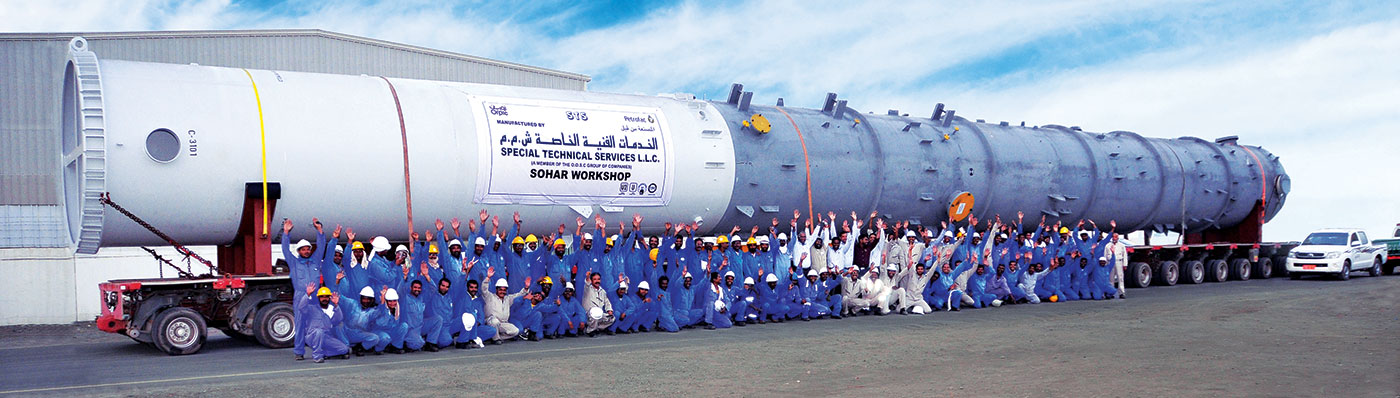

Product List
Process Equipment
- Pressure Vessels
- Reactors
- Stripper columns
- Columns and Towers
- 3 Phase / 2 Phase Separators
- Deaerators
- Scrubbers
- Test Separators /Steam Separators
- Fuel Gas Separators / Cyclone Separators
- Desalters / Desanders
Heat Transfer Equipment
- Shell & Tube Heat Exchangers ( All TEMA Type)
- Condenser
- Oil & Gas Coolers
- Kettle Type Exchangers
- Pre-Heaters / Re Heaters
- Steam Generators (OTSG and HRSG Modules)
- Hairpin Type Heat Exchanger
- Double Pipe Heat Exchangers (Jacketed Type)

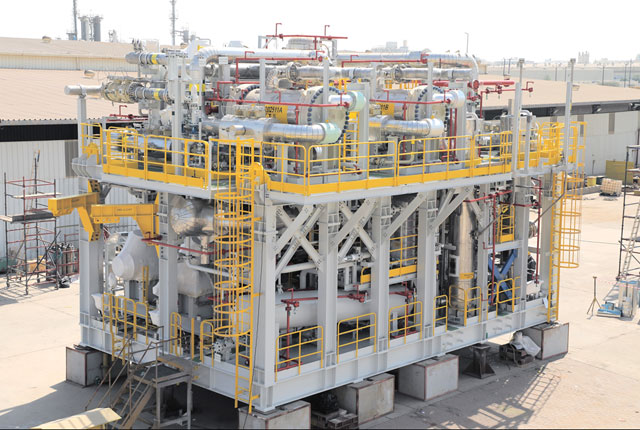

Process Modules & Skid Assemblies
- Gas Dehydration Packages
- Well Hook Up Skids
- Refrigeration Packages (Compressor & Chiller Modules)
- Boil Off Gas Skids
- Cyclic Steam Services Manifolds
- RO & ERD Modules
- Remote Gathering Manifolds
- Fuel Gas conditioning skids
- Chemical Injection Skids
- Multiport Selector Valves (MSV) skids
- Metering Skids
Other Oil & Gas Equipment and Services
- Pig Launchers & Receivers
- Storage Tanks of API 650 / EN BS14015 / EN 12285
- Nutshell Filters / Coalescer Filters
- Strainers / Filters
- Orifice plates and Orifice Assemblies
- Piping pre-fabrication
- Structural Fabrication
Process
Equipment
Delivered
Pressure
Vessels
Delivered
Skid
Packages
Delivered
Heat
Exchanger
Delivered
Countries
Equipment Exported
Project at a Glance

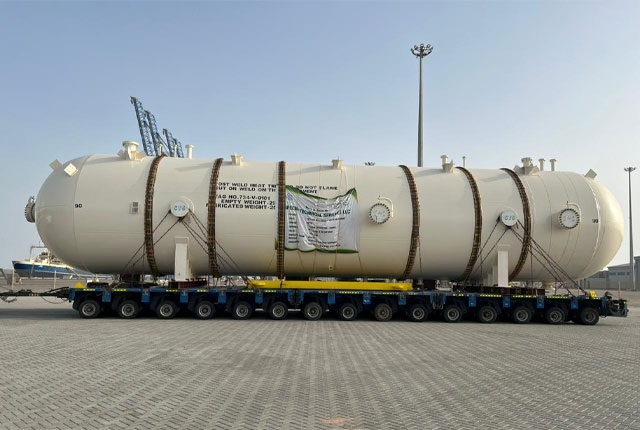

Scope Brief: Design, Supply and Fabrication of WELL FLUID SLUG CATCHER (734-V-0101) – 1 no.
