HDPE Lining

United Special Technical Services (USTS) is a wholly owned subsidiary of STS Group. USTS is a leader in providing high-performance thermoplastic lining solutions for the oil & gas, water, mining, municipal and industrial sectors. Along with their strategic global technical partnerships, USTS helps companies in addressing corrosion and abrasion challenges in pipelines, piping, tanks vessels and accessories.

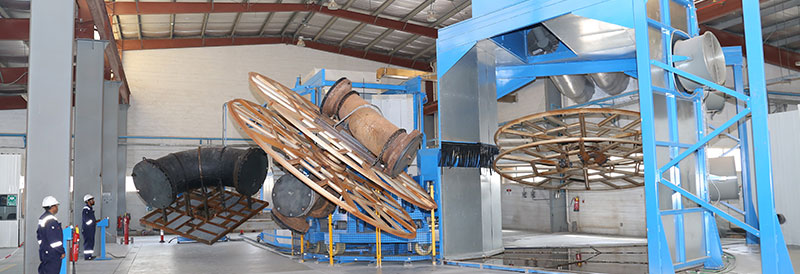

USTS owns and operates a state-of-the-art rotational lining facility. It is the first of its kind in Saudi Arabia and the largest facility in the Middle East. It employs a unique technology to line any metallic structure, regardless of shape and complexity. It is applicable in a wide variety of services up to a maximum temperature of 150°C

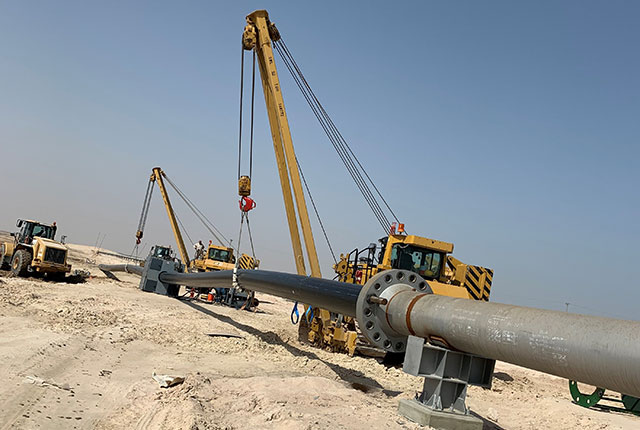

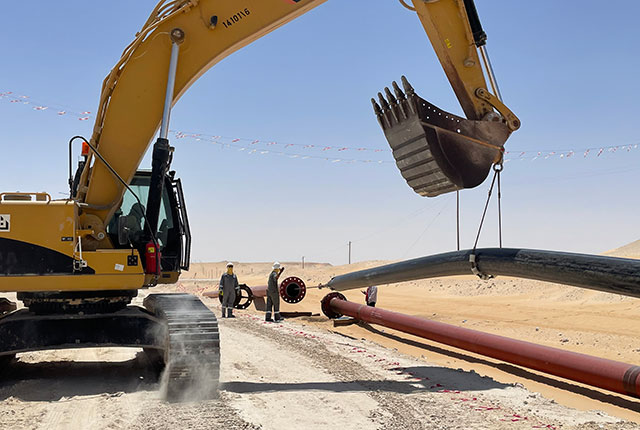

USTS has successfully completed around 25,000 km of installations for NOCs across the Middle East and Northern Africa, including Saudi Aramco, PDO, KOC, ADNOC, Sabic, Ma’adan, British Petroleum, Occidental Petroleum, Daleel Petroleum, and Qatar Petroleum.

Visit www.unitedsts.com

Technology

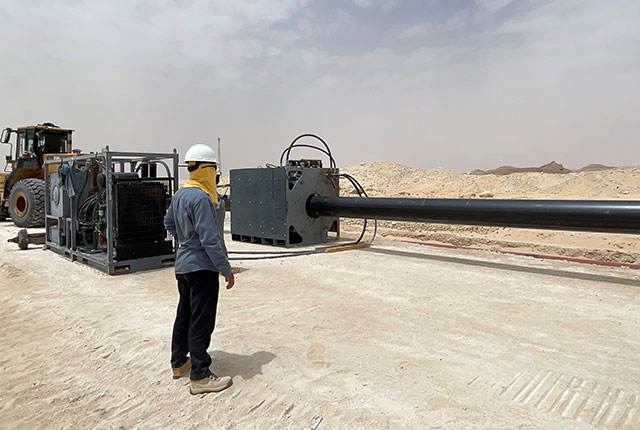

Tite Liner® system (HDPE Lining), a technology that enables a thermoplastic liner to fit tightly inside a host pipe. The Tite Liner® system begins as a thermoplastic pipe liner that has a larger outside diameter than the inside diameter of the steel, compressed radially as it passes through the specially designed roller reduction box. The liner then expands tightly following installation. The tight-fitting liner acts as a continuous barrier between the host pipe and the corrosive or abrasive material. The Tite Liner® system comes in sizes from 50 mm to 1,300 mm (2 inches to 52 inches) in diameter, with larger diameters possible in certain situations.

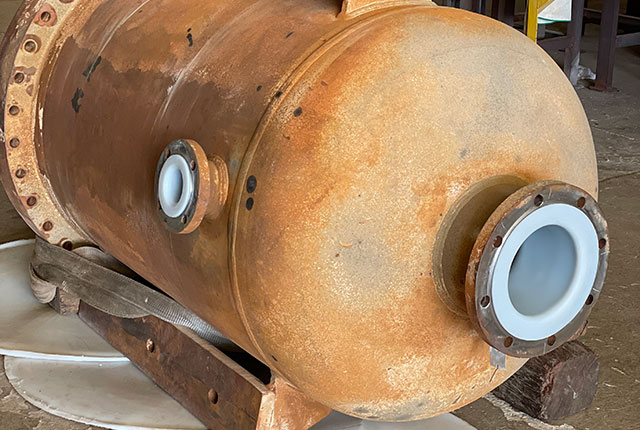

Bondaliner™ is applied via a rotational lining process. The granulated powder resin fed inside the fitting or vessel which rotates in an oven on two perpendicular axes, giving the resin time to melt and spread uniformly over all interior surfaces of the equipment. This unique Bondaliner™ process provides a seamless, permanently bonded liner.
